Equipment
Compact dimensions and comprehensive equipment provide comfort that will make your customers delighted.
Battery
12 V lead traction battery with 150/300 Ah capacity and undercharge protection. The charge indicator is on the panel in the kitchenette.
| Voltage: | 12 V |
| Capacity: | 150/300 Ah |

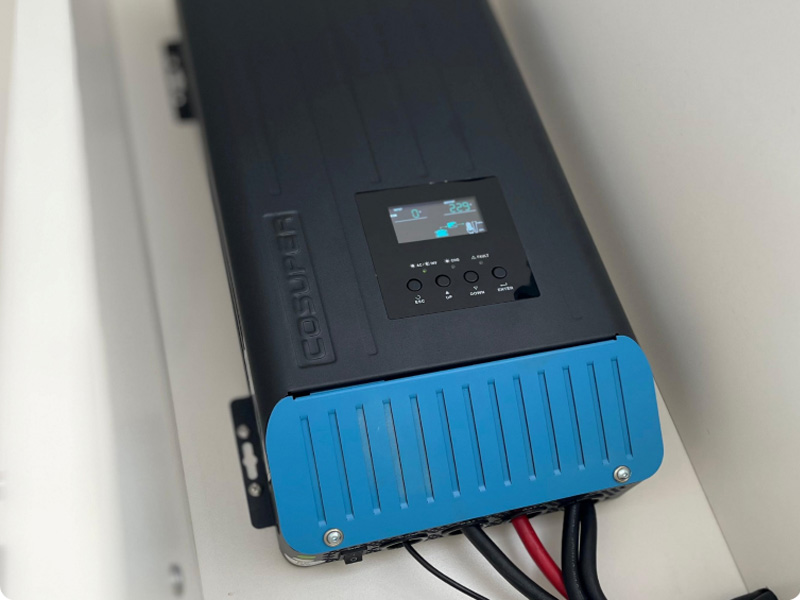

Voltage converter
Effectively recharges the traction battery when connected to the power grid.
| Output power: | 2 000 W |
| Output voltage: | 12 V |
| Input voltage: | 230 V |

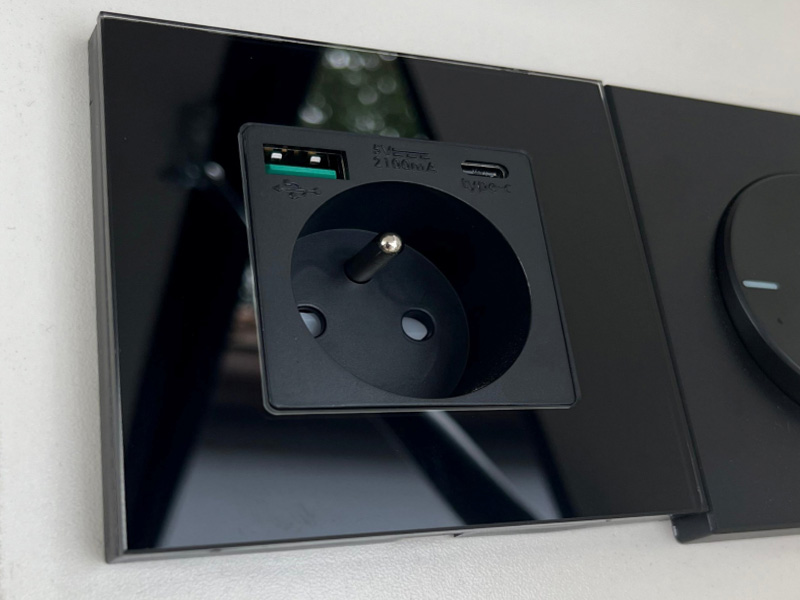

Socket
Sockets with USB-C & USB-A connectivity.
| Voltage: | 230 V |
| Current: | 16 A |

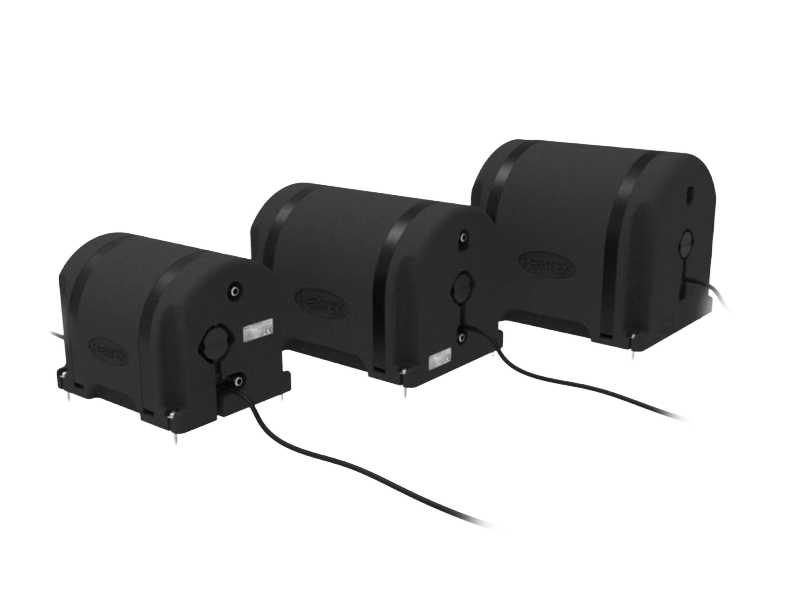

Water heater
Combined low-pressure electric boiler with thermostat for regulating water temperature in the range of 35-85° C.| Volume: | 6 l |
| Performance: | 300 W |
| Voltage: | 230 V |
| Water connection: | 10 mm |
Water pump
| Flow: | 11,3 l/min |
| Pressure: | 3,8 Bar |
| Voltage: | 12 V |
Water tank
The 70 l tank is equipped with a 40 mm diameter filling hole on the outer wall and a 3/4″ threaded drain hole. The pump automatically switches off when the water is exhausted. The level indicator is on the panel in the kitchenette.| Volume: | 70 litres |
| Filling opening: | diam. 40 mm |
| Service opening: | diam. 120 mm |
| Drain hole: | 3/4″ |
Storage box
With a volume of 350 litres, it provides plenty of space for safe and comfortable storage of your equipment. The lockable box is equipped with an integrated holder for a gas bottle of up to 20 l with a connection.| Dimensions: | 80 × 63/73 × 60 cm |
| Capacity: | 350 litres |
Refrigerator
The built-in compressor refrigerator powered by the installed 12V battery keeps the food fresh.
| Volume of cooling section: | 44 l |
| Volume of frozen section: | 6 l |
| Power consumption: | 45 W |
| Voltage: | 12/24 V |
| Coolant: | R134a |
Induction hob
Enables fast and efficient cooking when connected to the power grid.
| Power: | 2 200 W |
| Diam. of the cooking zone: | 200 mm |
| Voltage: | 230 V/16 A |
Gas stove
Single-burner gas stove with piezo ignition. The gas cylinder holder for cylinders up to 20 l is located in a storage box with an integrated connection.
| Diam. of the cooking zone: | 245 mm |
| Diam. of the burner: | 120 mm |
Stainless steel sink
Durable stainless steel sink with integrated mixer tap for convenient dish washing on the go.| Sink dimensions: | 240 × 300 × 100 mm |
| Height of the faucet: | 210 mm |
Shower set
A complete hand shower with simple controls and smart storage for a morning kick or evening relaxation.| Hose length: | 145 cm |
Mattress
Memory foam mattress, medium firm. The knitted mattress cover is breathable and washable.
| Dimensions: | 200 × 151 × 12 cm |
2× pillow
Two soft and comfortable pillows that can be washed frequently even at high temperatures. The cotton and polyester blend makes them easy to maintain.| Dimensions: | 30 × 30 cm |
Awning
A quality awning with integrated LED lighting for the outdoor area of your caravan, providing shade and illumination during the evenings.| Dimensions: | 300 × 200 cm |
LED lights
Energy saving LED lights provide sufficient lighting inside the caravan.| Luminosity: | 3 000 lm |
Outdoor lighting
Waterproof, energy-saving lighting located directly above the bedroom door illuminates the entrance to the caravan and the immediate surroundings during the evening hours.
Integrated window insect screen
Fine mesh is integrated directly into the windows to protect you from unwanted insects.
Integrated window blinds
Functional blinds, which are integrated directly into the caravan windows, allow light control and privacy.
Alu wheels
Stylish alloy wheels 165 R13 C.
Adjustable legs
| Extension range: | 14 cm |
Jockey wheel
Fixed jockey wheel for convenient connection to the car and easy maneuvering.
Handling assistant
Facilitates handling of the trailer on uneven surfaces and prevents unwanted movement. Not intended for permanent securing against movement.
170 W solar panel*
Monocrystalline photovoltaic solar panel with a controller for monitoring battery charging and discharging. 12V/24V operation.
| Performance: | 170 W |
| Efficiency: | 18,92% |
| Max. voltage: | 20,41 V |
| Max. current: | 8,32 A |
*equipment available on request
5 kW diesel heater*
A compact 5 kW diesel air heater provides fast, quiet and economical heating. With an LCD display and remote control, you always have the heat under control.| Heat output: | 5 kW |
| Fuel consumption: | 0,16-0,52 l/hour |
| Fuel tank capacity: | 5 l |
| Adjustable temperature range: | 8 až 36 °C |
| Usable altitude: | 3,000 m above sea level |
